Automatic Heat Exchanger Hydro Cleaning System

Product Details

Name

Details

Model

GYB-5-50/1500

Rate Pressure

1500bar(20kpsi)

Water flow

50L/min

Plunger diameter

26mm

Inpurt speed

1480 rpm

Pump speed

366 rpm

Plunger stroke

120 mm

Electric motor

160kw

Dimension

3200mm length*1600mm width*1700mm height

Main Features

1.Lightweight design, easy to move the cleaning equipment;

2.Can drive two cleaning soft guns to work at the same time;

3.During cleaning, the speed of inlet and outlet pipes can be adjusted independently;

4.High cleaning efficiency and fast speed;

5.Automatically rotating nozzle improves cleaning efficiency and reduces work difficulty;

6.The equipment is reasonably designed and can work continuously for a long time.

APPLICATION FIELD

1.Cleaning of chemical industry such as heat exchanger, cooling tower, boiler, evaporator, etc.;

2.Machinery industry Cleaning;

3.Central air conditioning cleaning;

4.Petrochemical Plant Cleaning

5.Condenser cleaning

6.Evaporator cleaning

7.Pipe Descaling

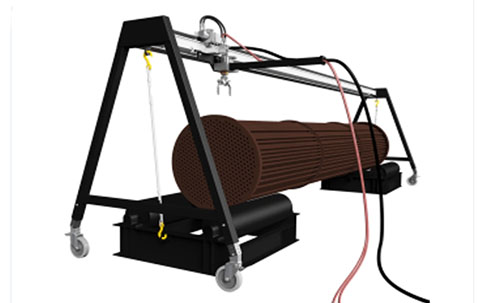

The automatic high-pressure water jet cleaning system is the most convenient method of cleaning heat exchangers. This system does not require manual operation of hoses at close range for cleaning, improving the efficiency of cleaning operations. High-pressure water crushes the scale layer and makes the scale peel off. It is a device that obtains high-pressure water through a high-pressure water pump driven by a motor or a diesel engine. It is flexible during cleaning and has a significant effect on carbon scale or hard scale that cannot be removed by chemical cleaning.

With decades of experience in manufacturing industrial cleaning equipment, we know that there are certain "problem" equipment in manufacturing plants, power plants and other facilities across the country. Because they are installed in a way that makes it extremely difficult to access them, these equipment are rarely thoroughly cleaned. This industrial pipe automatic cleaning system can achieve thorough cleaning of industrial heat exchangers and condensers that have been fouled for many years.

The Industrial Pipeline Automatic Cleaning Device is a practical and convenient system that can be paired with a variety of automation systems. The system can control, efficiently and safely clean the inner diameter of heat exchanger tubes. The Industrial Pipeline Automatic Cleaning System can also be paired with other high-pressure nozzles for tube sheet cleaning and surface preparation. It is specially designed to be modular, lightweight, easy to install and scalable for various exchanger sizes or configurations.

The cleaning tools used by the automatic positioner are so flexible that they can even pass through curved exchanger pipes for a thorough cleaning. For this particular project, our team used an automatic dual-gun machine to speed up the cleaning process by cleaning multiple pipes at the same time.

We often reduce traditional cleaning times by 40% or more, getting plants and equipment back up and running with far less downtime and production losses than ever before.

For this heat exchanger automatic cleaning system, the job was completed in seven hours, about 40% less time than using the manual spray gun method. And the automatic cleaning system will achieve a more precise and thorough cleaning than the handheld high-pressure gun cleaning method.

Customized Service for Each Job

Our automated boiler, heat exchanger and other equipment cleaning systems are very flexible, allowing us to fully customize our equipment and methods to complete each job. We will develop more efficient, safer and more economical cleaning solutions for customers based on customer needs and site conditions.

Whether the challenge is a water tank with decades of hardened mineral buildup or a pile of boiler tubes that can’t be reached with manual cleaning equipment, there are automated solutions to solve these problems.
